HB175 S - Egg Incubator - Setter


Frequently Bought With

In stock and ready for shipping

Local pickup available

Usually ready in 24 hours

View location details

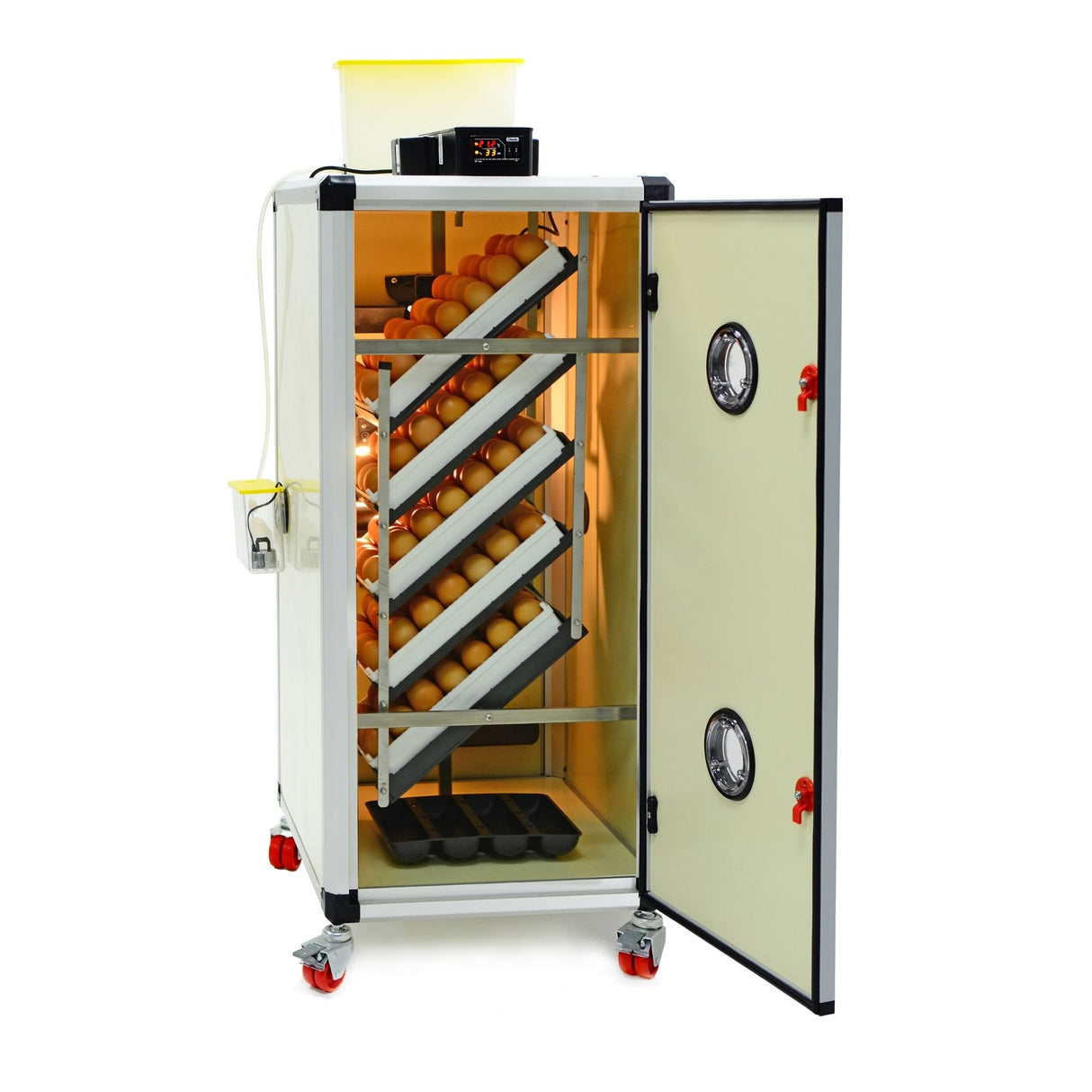

Embark on a journey of incubation excellence with the Cimuka HB175S, a state-of-the-art cabinet egg incubator, first of its kind in the market with its patented, energy-efficient design. This automatic cabinet incubator is more than just a quail egg incubator or incubator for chicken eggs; it's a revolutionary path to achieving higher hatch rates with unparalleled ease and automation. Best for hatcheries, small poultry operations, homesteads, farms, poultry enthusiasts and more. NOTE: Hatcher sold separately*

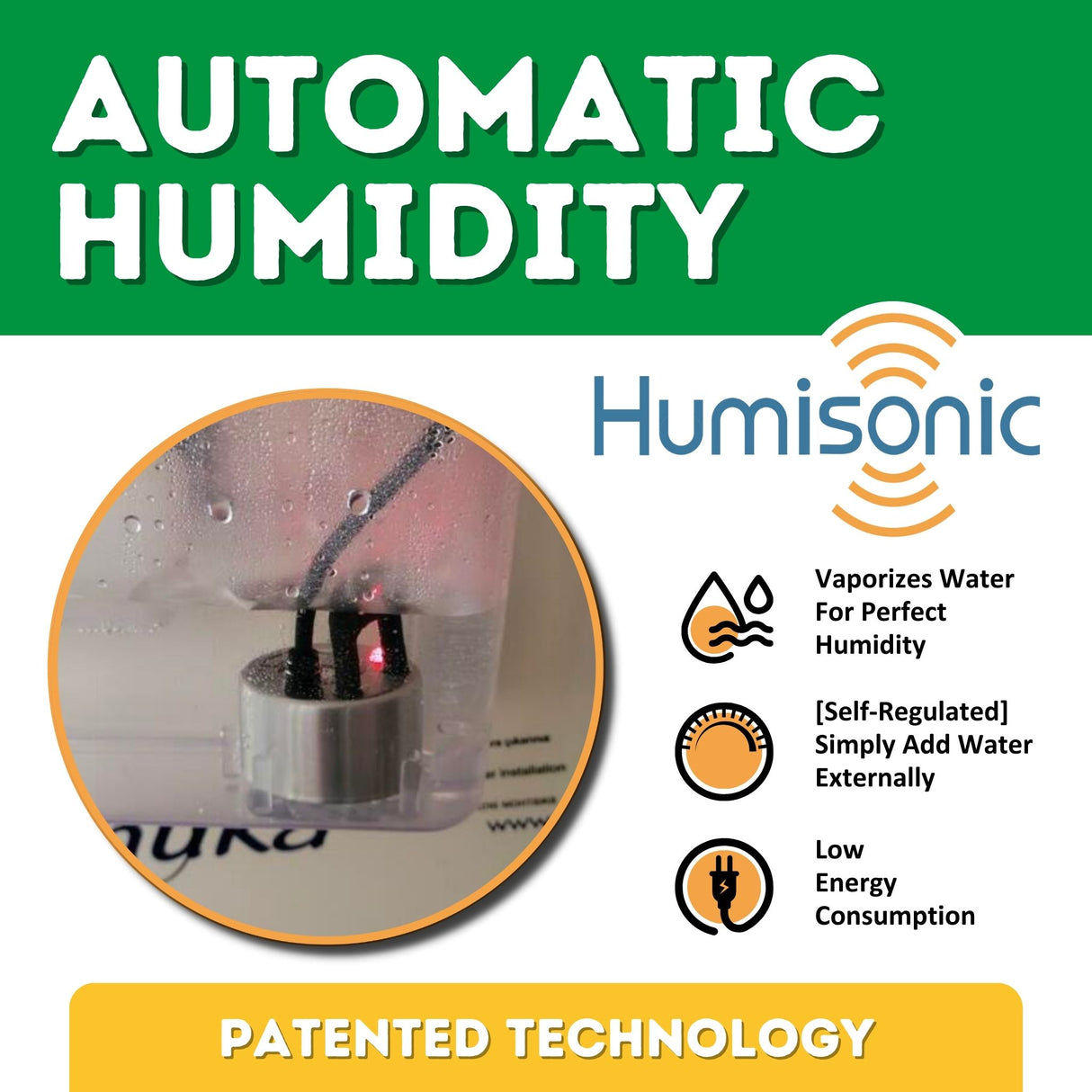

Humisonic TM Humidity Control: Ensuring precise humidity control, the HB175S's HumisonicTM System maintains the internal humidity according to your set parameters. Simple to use, just add water to the tank above, and for additional support, fill the internal bottom pan with water as needed.

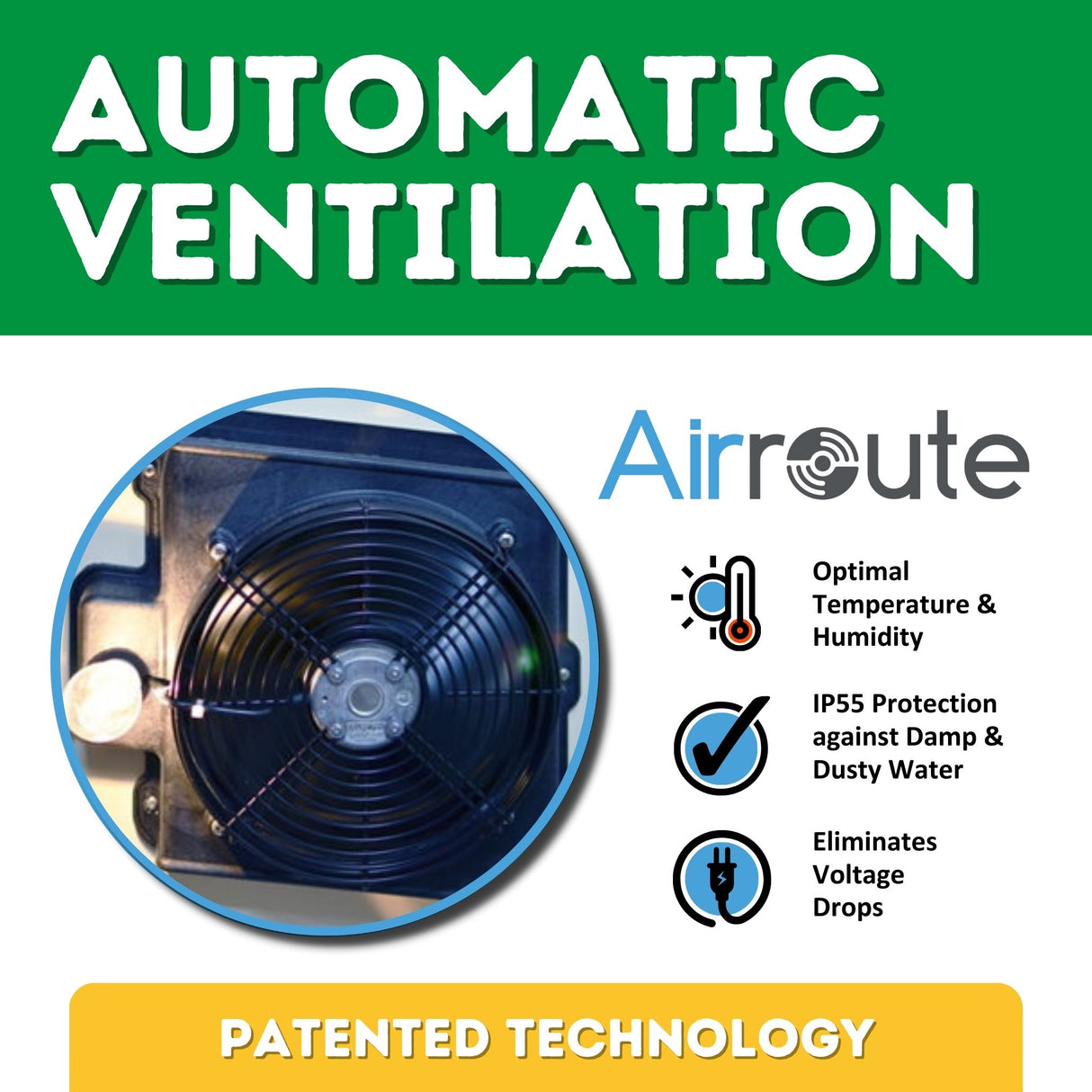

AirRoute TM Ventilation System: The HB175S is equipped with the AirRoute TM ventilation fan system, which is IP55 certified and uses minimal energy. This advanced system offers protection from voltage fluctuations and first-class defense against dust and humidity. You can rest assured that your incubator will maintain consistent temperature and humidity throughout.

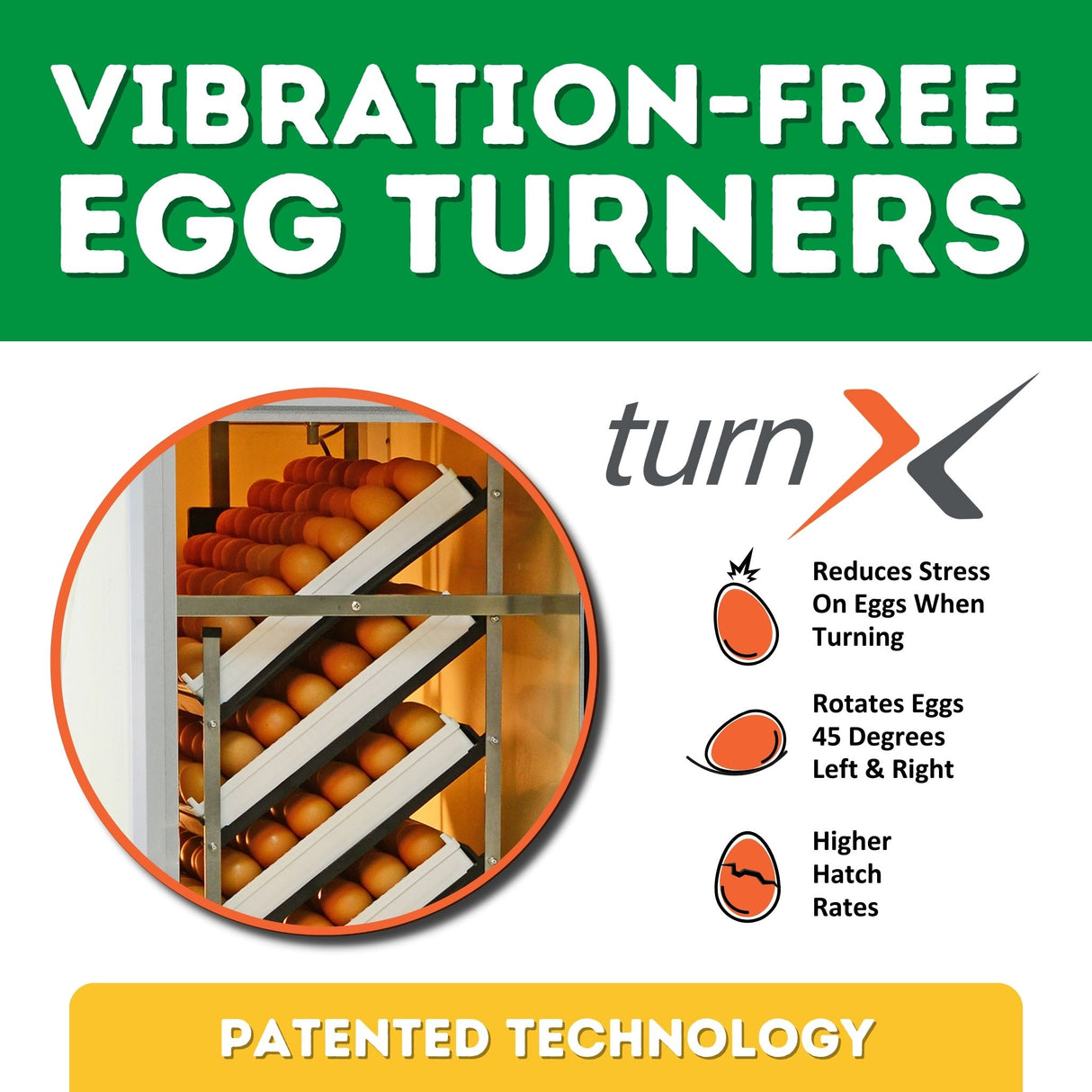

TurnX TM Egg Turners - Vibration-Free and Energy-Efficient: The incubator boasts TurnX TM egg turners, reducing stress on your eggs with their vibration-free operation. These precisely calibrated turners turn a full 45 degrees each side, ensuring high hatch rates while using minimal energy, thereby saving you money.

Innovative Active Periodic Cooling (APC): The HB175S features the groundbreaking Active Periodic Cooling technology, a first in the market. Mimicking the natural incubation process where birds leave the nest, allowing eggs to cool and release moisture, APC adjusts the temperature and humidity within the incubator to replicate this natural cooling and dehumidifying process. This unique feature is especially crucial for hatching goose eggs, significantly increasing hatch rates.

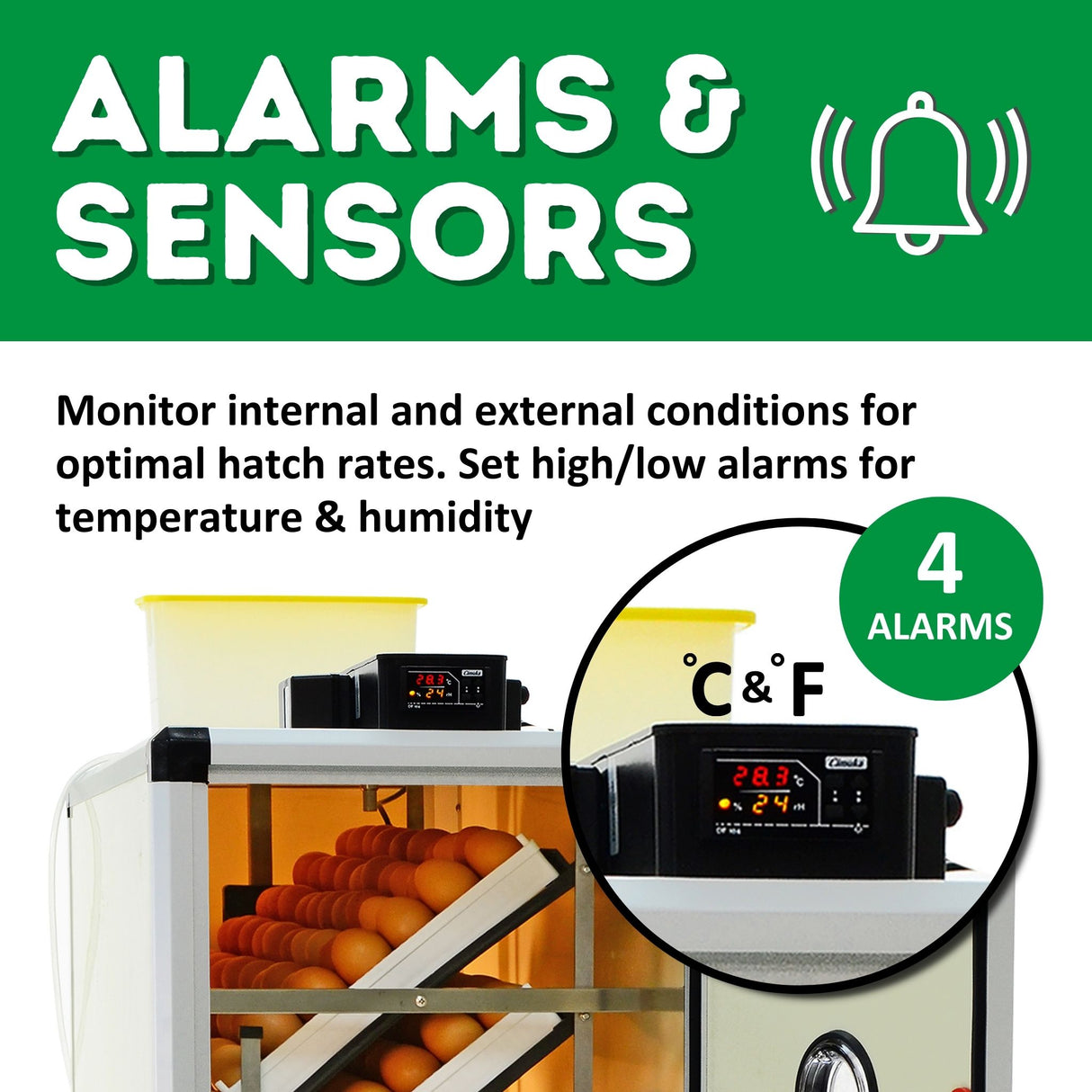

Advanced Alarm System for Monitoring: The HB175S features two advanced alarms for high/low temperature and high/low humidity, each with a room sensor. These alarms enable you to monitor both the internal and external conditions, ensuring optimal incubation conditions at all times. You can ditch your hygrometer and thermometer with our self-regulated egg incubators.

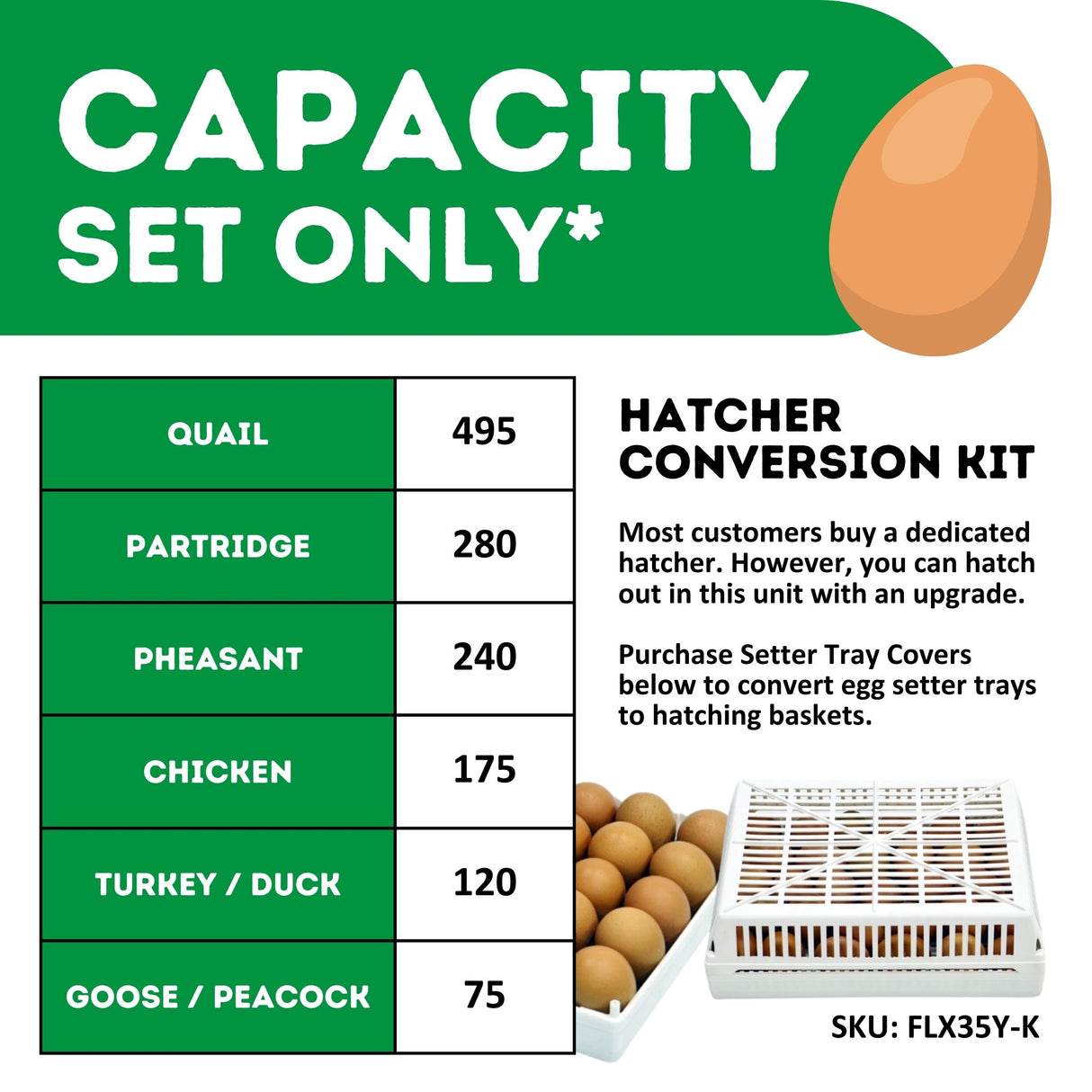

Versatile Capacity for Various Bird Eggs: The HB175S is exceptionally versatile, accommodating a wide range of poultry eggs. This model can set up to 495 quail eggs, 280 partridge eggs, 240 pheasant eggs, 175 chicken eggs, 120 turkey eggs, 120 duck eggs, 75 goose eggs, and 75 peacock eggs. Purchase hatcher separately*

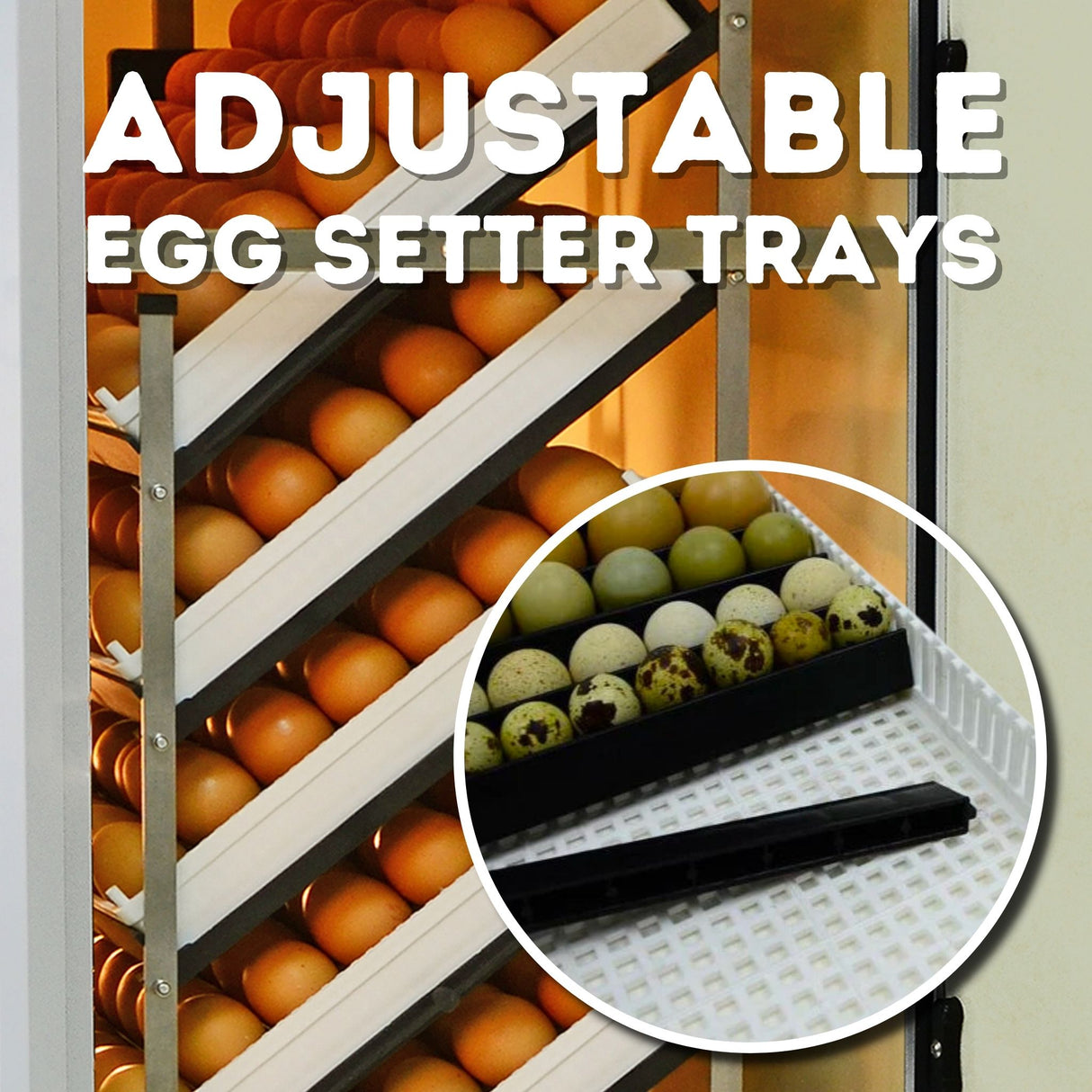

Adjustable Egg Setter Trays: With 5 adjustable egg setter trays accommodating a variety of egg sizes, the HB175S is perfect for a wide range of poultry breeding eggs, including quail, chicken, peacock, and more. Its large capacity of up to 175 chicken eggs and adaptable tray dividers make it an ideal incubator for those who require versatility in their hatching endeavors. You must purchase Setter Tray Covers (SKU: FLX35Y-K) if you want to set and hatch in the same unit.

User-Friendly and Maintenance-Friendly: Designed for easy maintenance, the HB175S offers front and back access, simplifying cleaning and upkeep. This feature, along with its user-friendly interface, makes the incubator approachable and easy to use, even for those new to incubation.

Patented Low-Energy Design for Cost-Effective Operation: Embrace the cost-saving benefits of the HB175S's patented technology, designed for low energy consumption without compromising on performance.

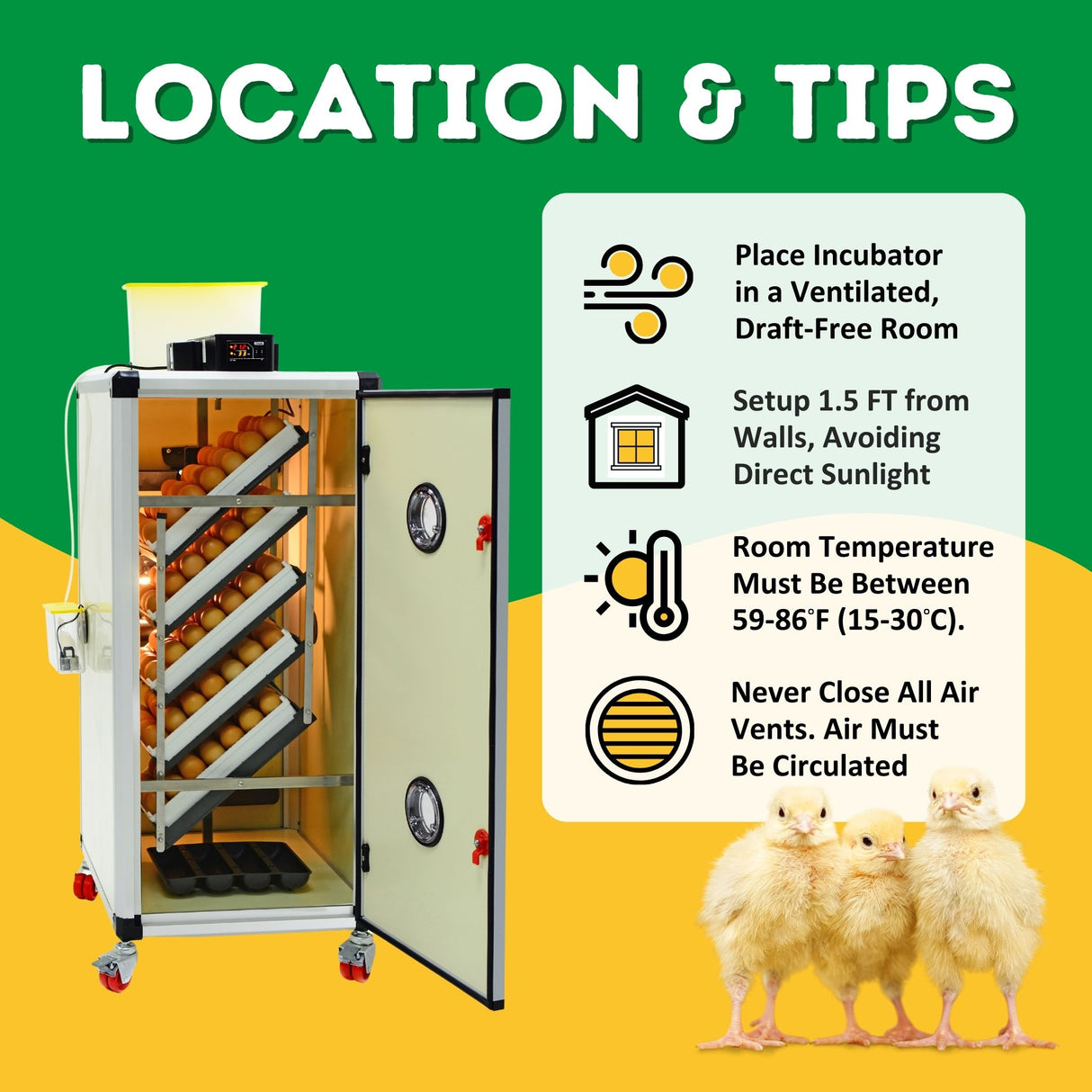

Ideal Location and Power Usage: Recommended for use indoors in a draft-free room, preferably a temperature-controlled room. Avoid direct sunlight if possible. The HB175S operates on 110 V / 60 HZ, with an average energy consumption of 75 W and a maximum wattage of 230 W. Its dimensions are L 22” x W 21” x H 49”, fitting perfectly in any indoor setting.

*If you plan to use this setter as a hatcher, tray covers need to be purchased. Tray cover (SKU: FLX35Y-K) fits on egg setter trays when dividers are removed.


Brand: Cimuka

Model: HB175S

Material: Insulated Walls: ABS Plastic - Frame: Anodized Aluminum

EAN: 8682258010417

Assembly Required: Minimal

Recommended Location: Indoors, preferably a temperature-controlled room


- Voltage: 110 V / 60 HZ

- Average Energy Consumption:75 W

- Max Wattage: 230 W

Dimensions & Weight

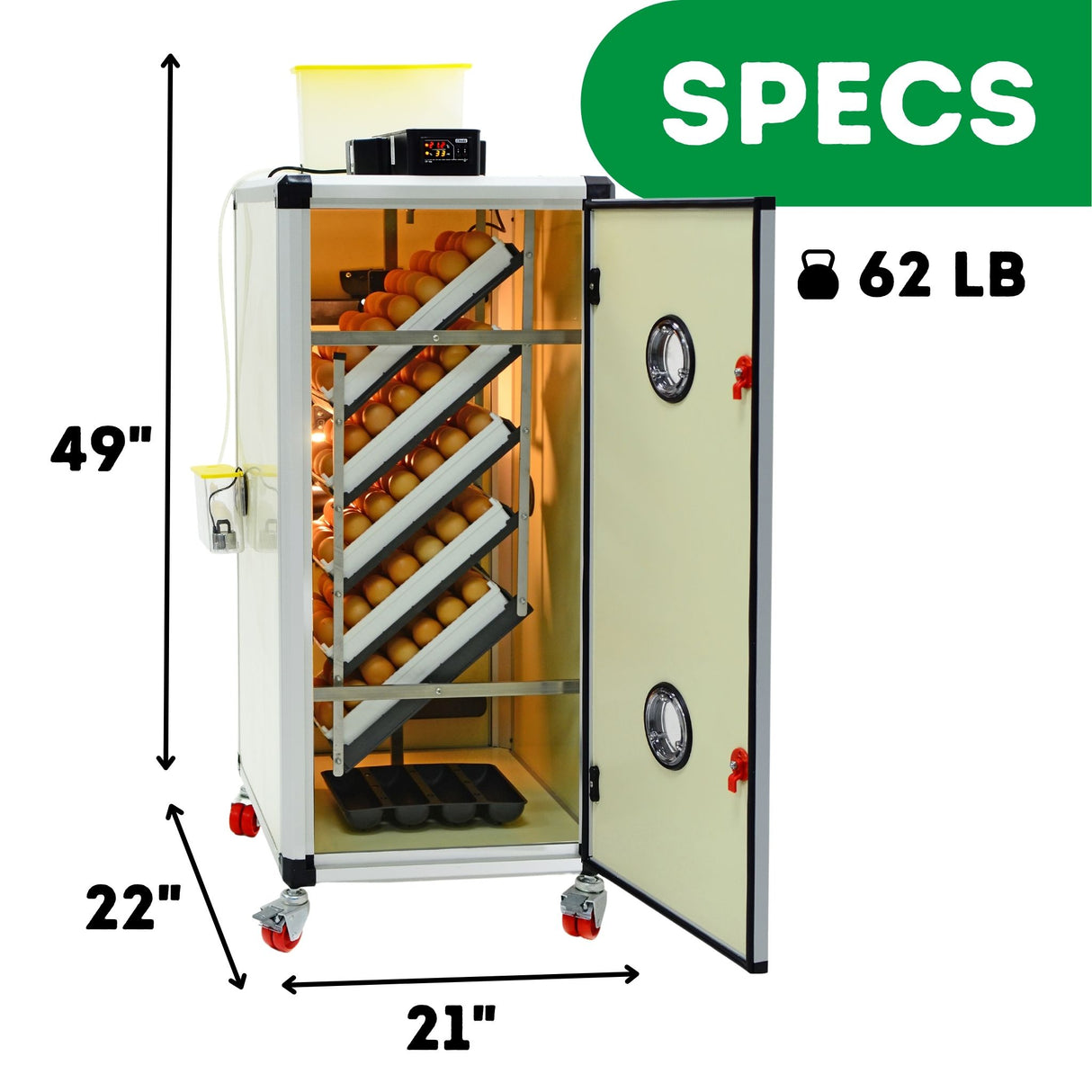

Unit: L (22 in) x W (21 in) x H (49 in)

Box: L (25 in) x W (21 in) x H (41 in)


Cabinet Size: L (19.5 in) x W (17.5 in) x H (36 in)


Weight: 62 lb

Support Documents

User Manual: View

Warranty: View


Questions? Contact Us


Active Periodic Cooling (First in the market)
Most birds leave the nest, at least once, during incubation. During this time, the eggs cool down and release moisture. Active Periodic Cooling (APC) changes the temperature and humidity within the incubator to reenact the cooling and dehumidifying process that eggs would receive naturally from the mother bird leaving the nest. This unique addition to our incubators increases hatch rates. This is extremely important if you hatch goose eggs!

Egg Turners: TurnX TM
Reduce stress on your eggs with vibration-free egg turners. These calibrated turners ensure high hatch rates and use minimal energy - saving you money!

Ventilation: AirRoute TM
Our AirRoute TM ventilation system is IP55 certified and uses minimal energy.  The system protects you from voltage changes and offers a first in class protection from dust and humidity. You can rest assure that your system will maintain the same temperature and humidity throughout the whole cabinet.

Humidity: Humisonic TM
HB incubators always keep the internal temperature and humidity to your set parameters. Our HumisonicTM System provides humidity to the incubator when necessary. Just add water to the tank up top! Also, don't forget to fill your bottom pan with water for additional support - as needed.

HB incubators offer 2 alarms:

- High / Low Temperature Alarm (Plus room sensor)
- High / Low Humidity Alarm (Plus room sensor)



Quail: 495

Partridge: 280

Pheasant: 240

Chicken: 175

Turkey: 120

Duck: 120

Goose: 75

Peacock: 75

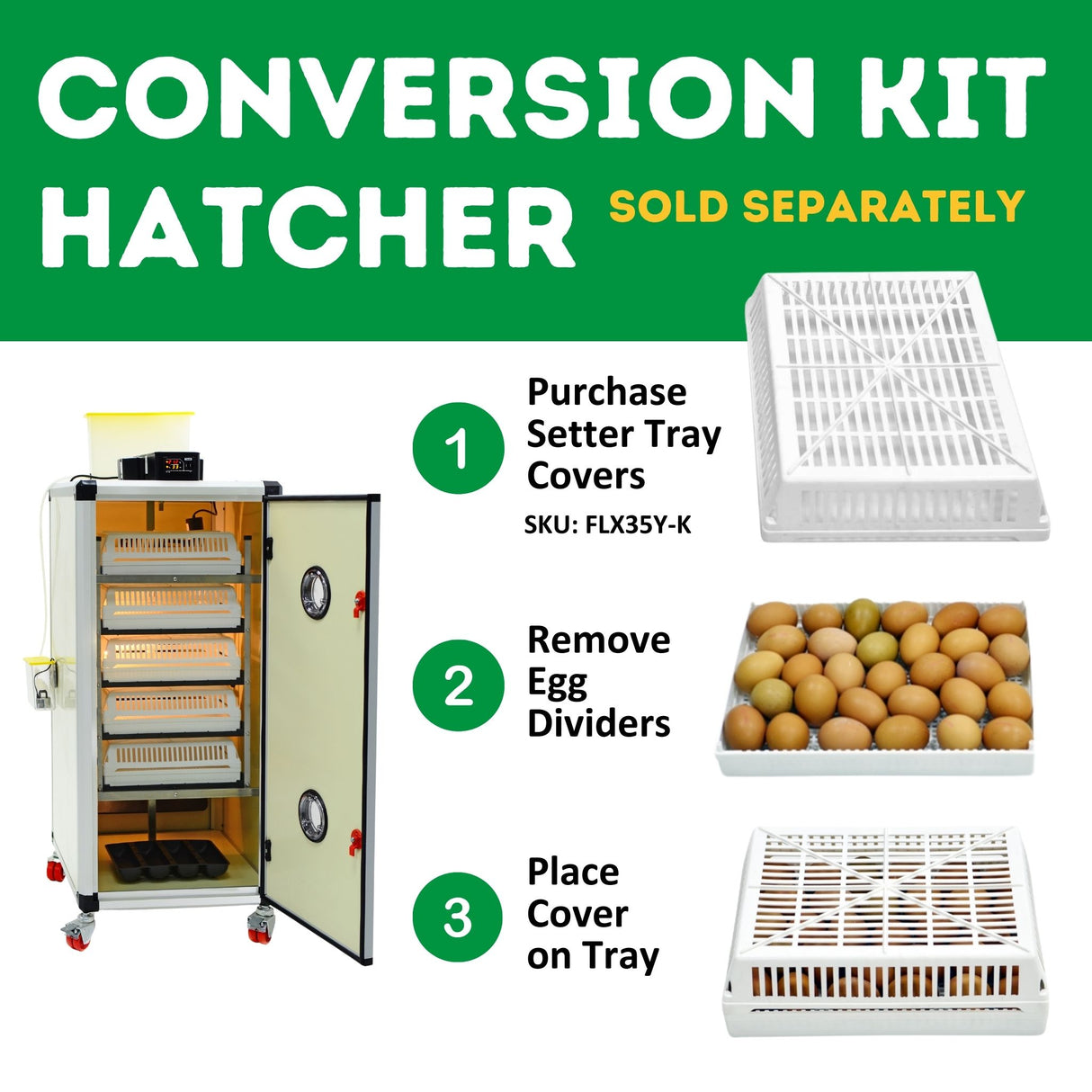

Need to hatch out of this incubator? Quickly convert the current setter trays to hatching baskets by removing the separators and purchasing Setter Tray CoversFLEXY35Y. These covers fit our Setter and Combined HB Series Incubators.

View All Models

Product Support

Customer Review

User Manual


What voltage is it?


Can it be powered via solar?

Our incubators cannot be powered via solar.

How does the incubator turn my eggs?

With our HB models, the setter trays are placed in an anodized aluminum frame. The frame will turn 45 degrees in each direction, slowly, over the course of one hour. Even with the tilt of the frame, your eggs are safe to set and will not fall out of the tray.


Customer Reviews

Based on 2 reviews

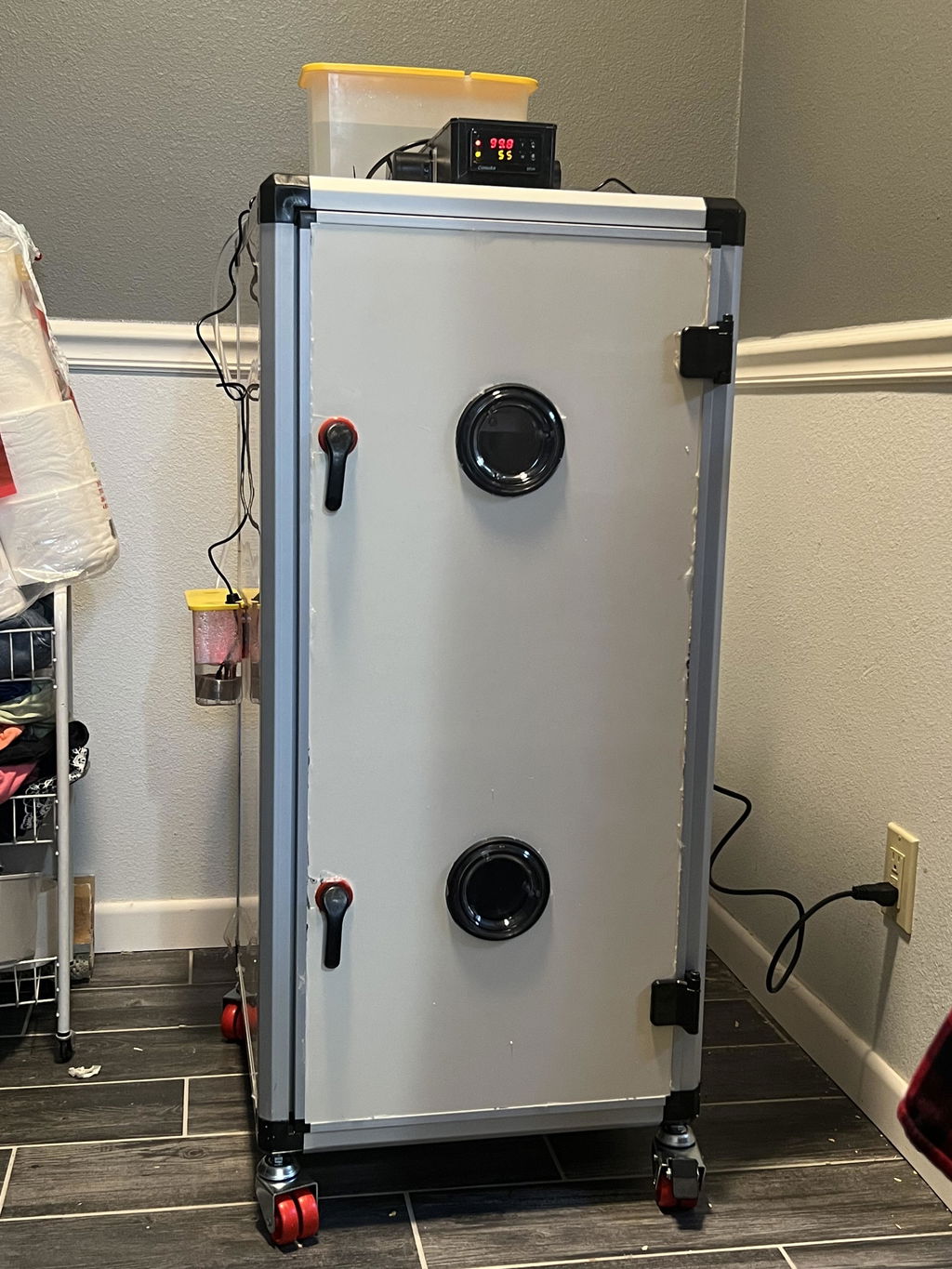

Dalton Jackson
Very PLeased

Very well made and the controls are outstanding.

Thank you for the review, Dalton - The Hatching Time Team

Wonderful experience

This is an amazing incubator. The temperature and humidity stay constant. We moved eggs over from another incubator and already hatched a batch!
We had a shipping issue and the support staff was very fast and helpful!

Thank you for the review, Leslie. Great to hear it was a wonderful experience even with a shipping issue - The Hatching Time Team
