T1600 H - Fully Automatic Egg Hatcher

Mix-n-Match Trays!

Our T Series incubators can be customized based on the eggs you hatch. This is important if you hatch a variety of eggs. Contact us and we will create your dream setup.

_____

Contact Us:

Phone: (800) 511-1369

Email: info@hatchingtime.com

_____

Customization Request Form:

View Form

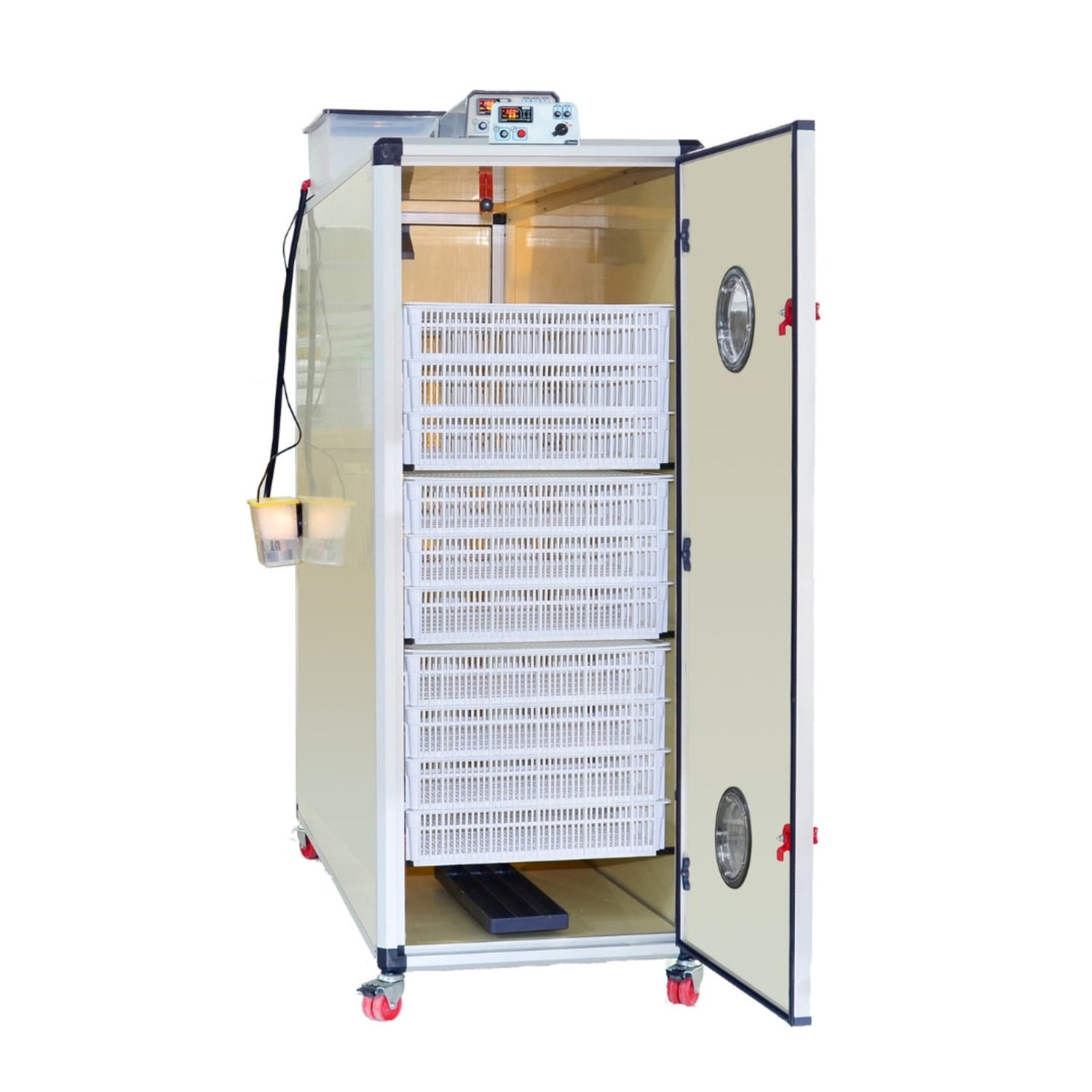

In this hatcher (H) model, hatch out 1600 chickens at a time with 20 separate hatching baskets. This model can also be used for quail, turkey, partridge, pheasant, peacock, goose and duck eggs.

This highly insulated cabinet incubator offers a fully automated incubation experience for the last few days before hatching. This incubator is equipped with humidity / temperature sensors to encourage higher hatching rates and lower electrical bills. Easily check the temperature and humidity conditions of the room through the onboard display. Cimuka’s advanced control panel even has an alarm function to alert you if the room conditions change outside of your preset parameters.

Capacity

This incubator can only hatch eggs. A separate setter must be purchased. This incubator comes with 20 egg baskets (SKU: CS80Y).

Bird	Eggs
Quail	4160
Partridge	3080
Pheasant	2160
Chicken	1600
Turkey	1260
Duck	1260
Goose	800
Peacock	800

View All Models

Technology Inside

Control System: DiGiFEEL TM
DiGiFEELTM patented incubation control system that delivers next-level digital controls, sensors and software. The patented technology in DiGiFEELTM is a concept aimed at controlling the environmental on the incubator. The focus is providing the perfect conditions for temperature, humidity, pressure, and gas by using high-tech hardware and software to control every situation.

Ventilation: AirRoute TM
Our AirRoute TM ventilation system is IP55 certified and uses minimal energy. The system protects you from voltage changes and offers a first in class protection from dust and humidity. You can rest assure that your system will maintain the same temperature and humidity throughout the whole cabinet.

Humidity: Humisonic TM
T Series incubators always keep the internal temperature and humidity to your set parameters. Our HumisonicTM System provides humidity to the incubator when necessary. Just add water to the tank up top! Also, don't forget to fill your bottom pan with water for additional support - as needed.

Alarm(s)
T Series incubators offer 2 alarms:

- High / Low Temperature Alarm (Plus room sensor)
- High / Low Humidity Alarm (Plus room sensor)

Front & Back Access
Full access to your incubator makes cleaning so much easier! Just ask anyone who has tried a similar setup. We decided to design these incubators in a way that makes simple tasks just that much easier.

Specifications

Brand: Cimuka

Model: T1600H

Design: DiGiFEEL TM

Material:

• Insulated Walls: ABS Plastic
• Frame: Anodized Aluminum

Power:

• Operating Voltage: 110 V / 60 HZ
• Average Watts: 425 W
• Max Wattage: 1200 W

Assembly Effort: Minimal

Recommended Location: Indoors, preferably a temperature-controlled room

Dimensions & Weight:

• Cabinet comes pre-assembled. Simply attach top water tank and side humidity device.
• Assembled Unit: W 32.8” x D 52.7” x H 82.7”
• Weight: 287 lb

Assembly / User Manual

User Manual

Brand: Cimuka

Material: Insulated Walls: ABS Plastic - Frame: Anodized Aluminum

Assembly Required: Yes

Recommended Location: Indoors, preferably a temperature-controlled room

Voltage: 110 V / 60 HZ

Average Energy Consumption:

Max Wattage: 1200 W

_

Dimensions & Weight

Unit: L (52.7 in) x W (32.8 in) x H (82.7 in)

Box: L () x W () x H ()

Cabinet Size: L () x W () x H ()

Weight: 287 lb

_

Questions? Contact Us

____

Quail: 4160

Partridge: 3080

Pheasant: 2160

Chicken: 1600

Turkey: 1260

Duck: 1260

Goose: 800

Peacock: 800
