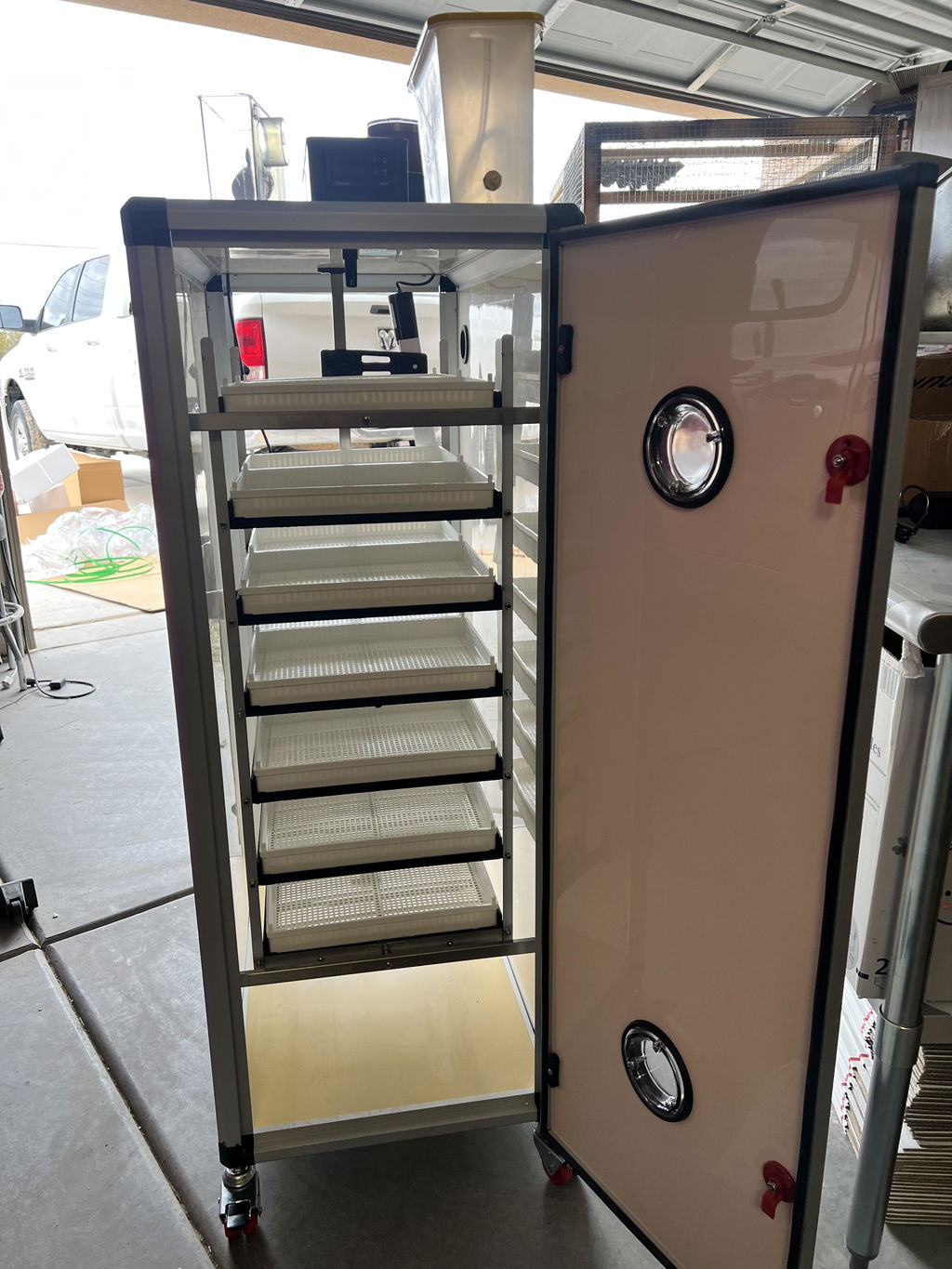

In this setter (S) model, set up to 500 chicken eggs at a time with 14 adjustable egg racks. This model can be used for quail, turkey, partridge, pheasant, peacock, goose and duck eggs. Hatcher Only and Combined Models can be purchased as well.

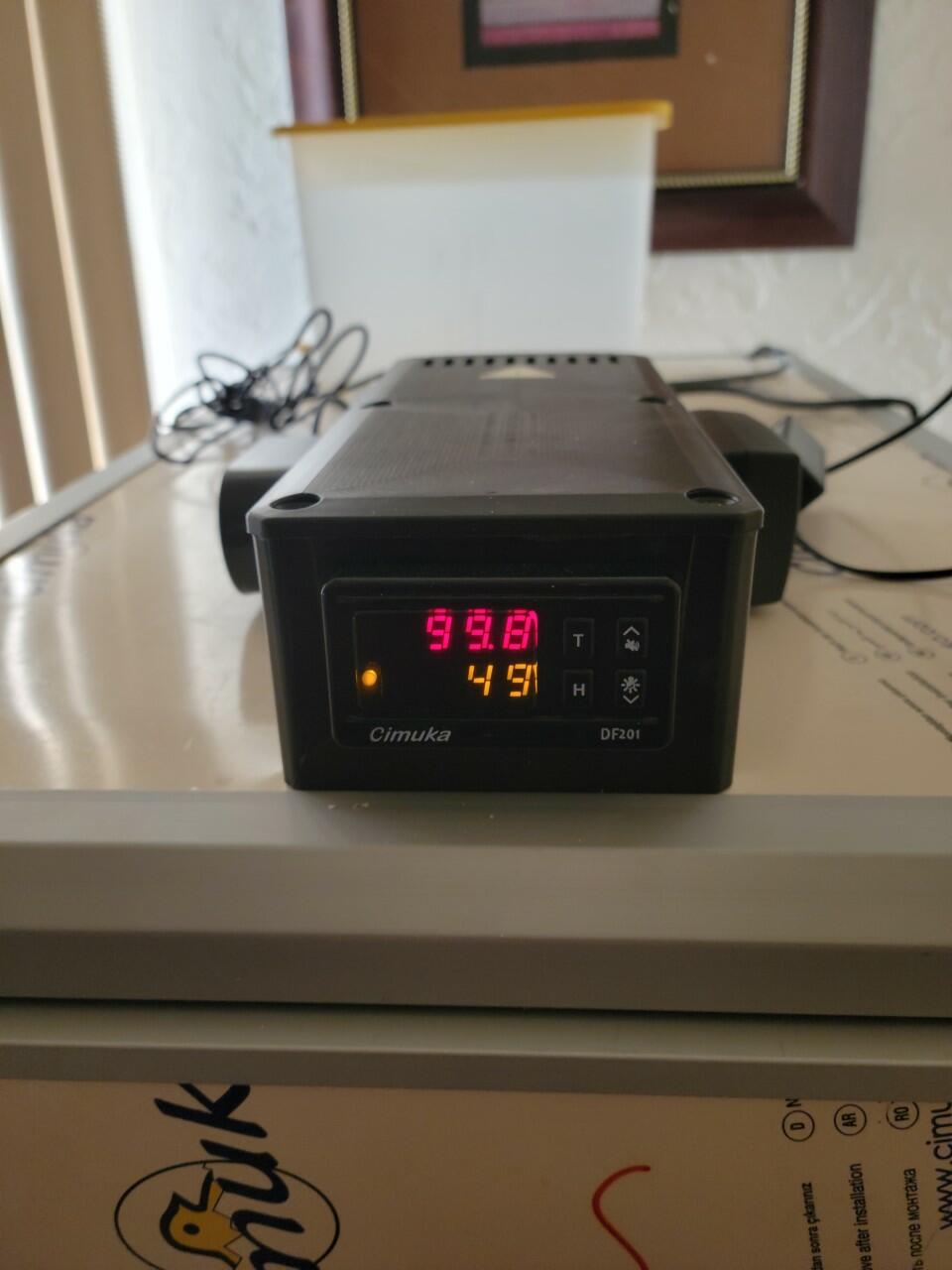

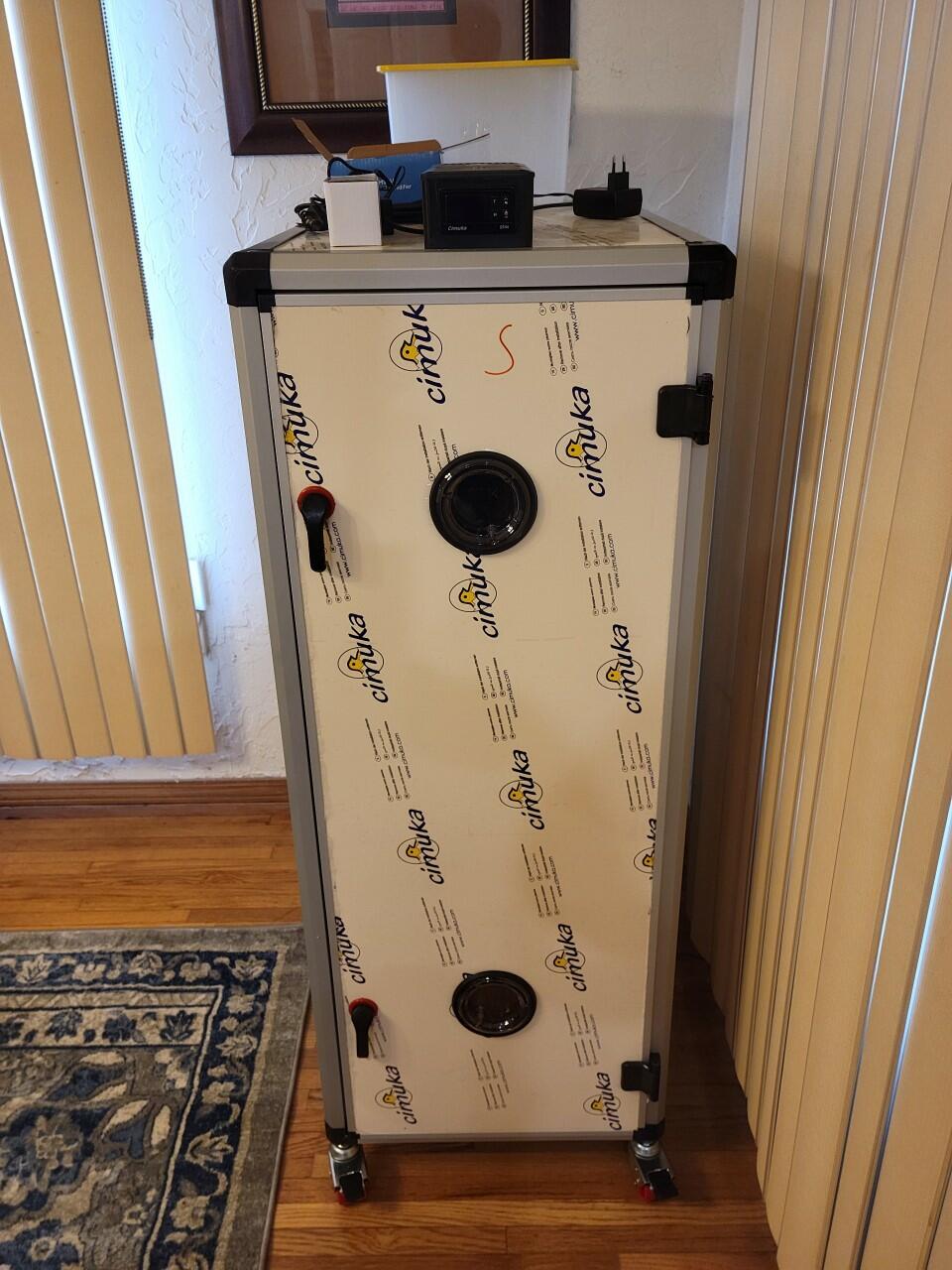

This highly insulated cabinet incubator offers a fully automated incubation experience with adjustable automatic egg turners and humidity / temperature sensors to encourage higher hatching rates and lower electrical bills. Easily check the temperature and humidity conditions of the room through the onboard display. Cimuka’s advanced control panel even has an alarm function to alert you if the room conditions change outside of your preset parameters.

Capacity

Need to hatch out of this incubator? Quickly convert the current setter trays to hatching baskets by removing the separators and purchasing Setter Tray Covers FLEXY35Y. These covers fit our Setter and Combined HB Series Incubators.

View All Models

Technology Inside

Active Periodic Cooling (First in the market)
Most birds leave the nest, at least once, during incubation. During this time, the eggs cool down and release moisture. Active Periodic Cooling (APC) changes the temperature and humidity within the incubator to reenact the cooling and dehumidifying process that eggs would receive naturally from the mother bird leaving the nest. This unique addition to our incubators increases hatch rates. This is extremely important if you hatch goose eggs!

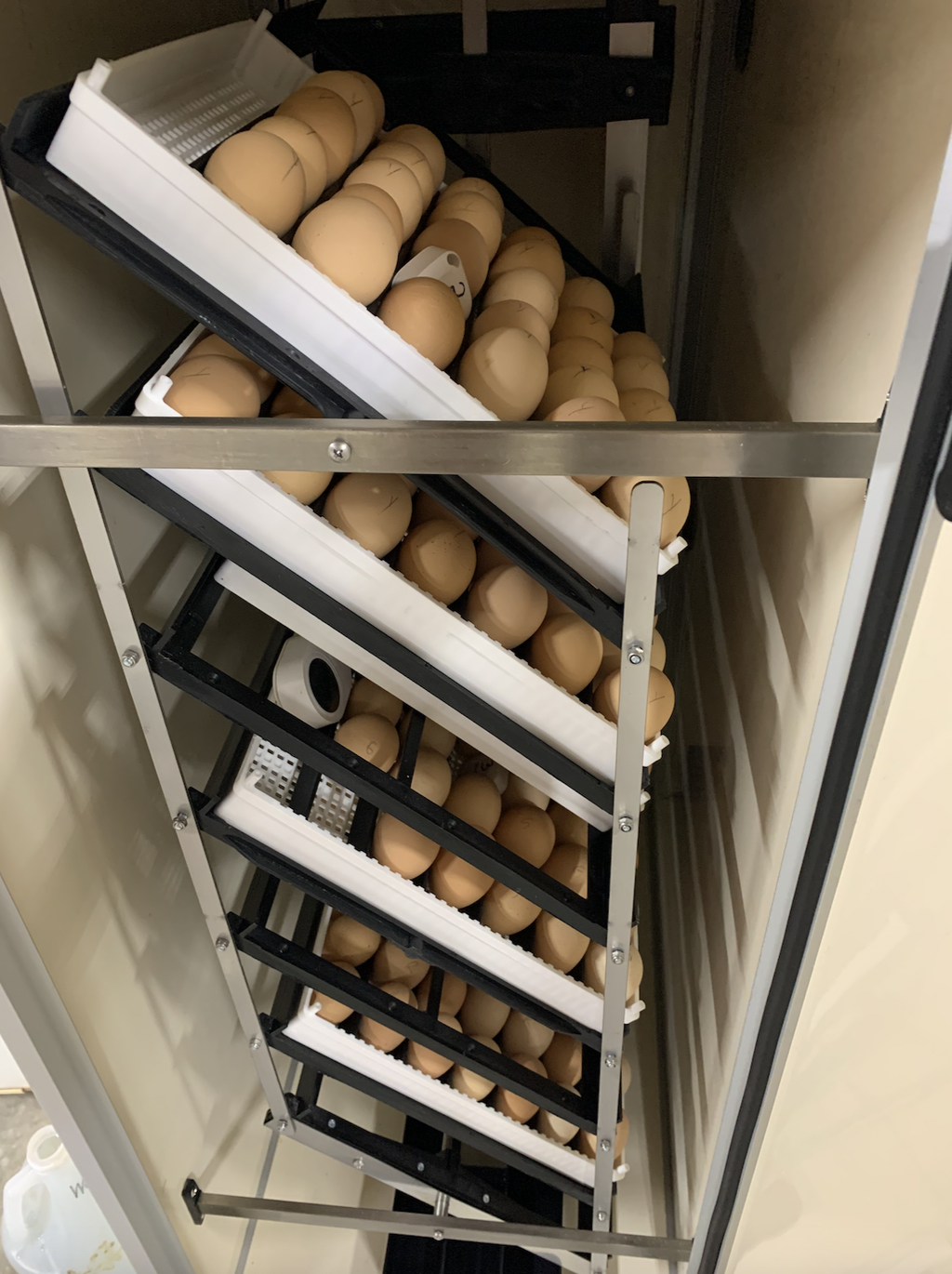

Egg Turners: TurnX TM
Reduce stress on your eggs with vibration-free egg turners. These calibrated turners ensure high hatch rates and use minimal energy - saving you money!

Ventilation: AirRoute TM
Our AirRoute TM ventilation system is IP55 certified and uses minimal energy.  The system protects you from voltage changes and offers a first in class protection from dust and humidity. You can rest assure that your system will maintain the same temperature and humidity throughout the whole cabinet.

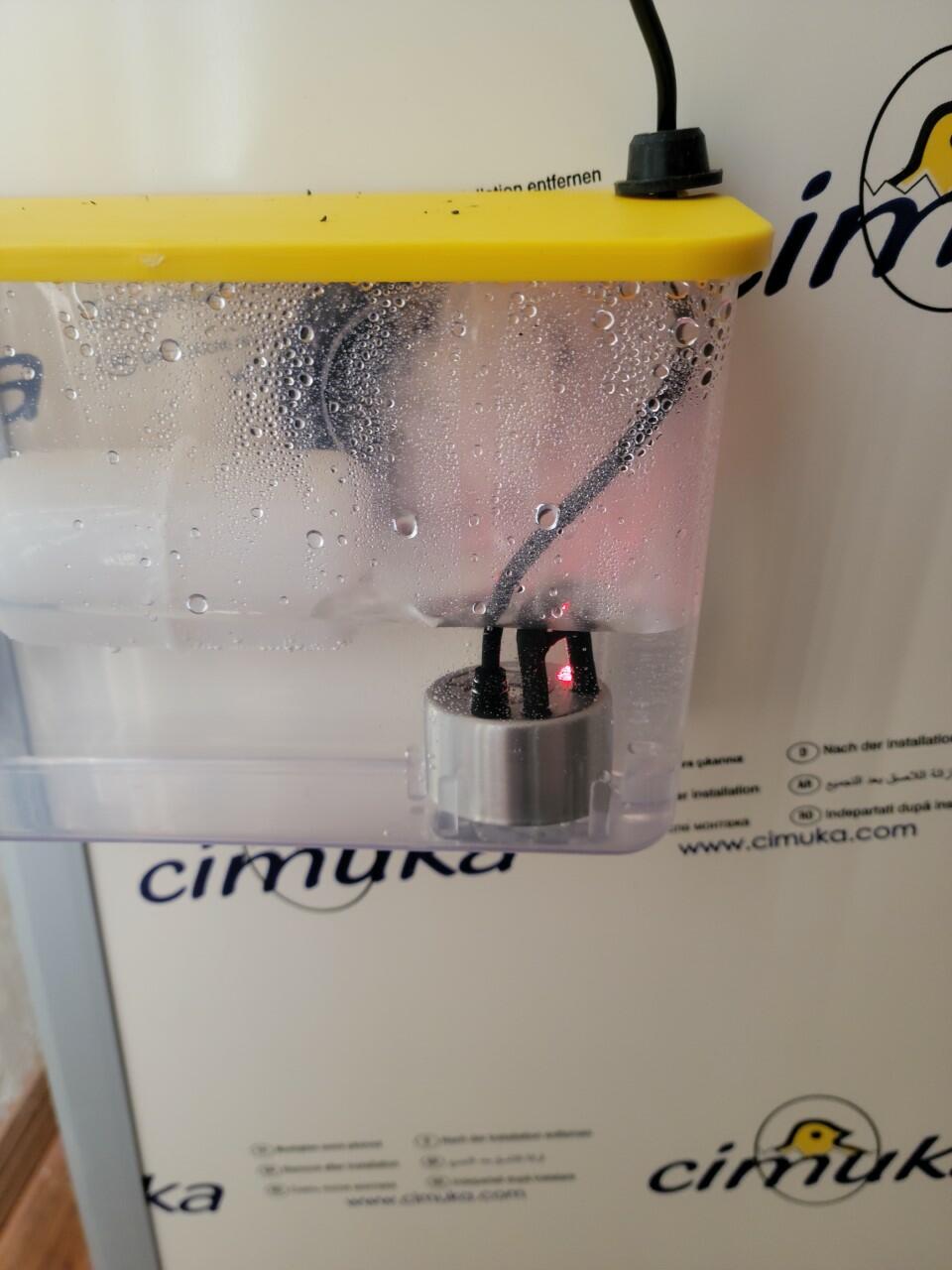

Humidity: Humisonic TM
HB incubators always keep the internal temperature and humidity to your set parameters. Our HumisonicTM System provides humidity to the incubator when necessary. Just add water to the tank up top! Also, don't forget to fill your bottom pan with water for additional support - as needed.

Alarm(s)
HB incubators offer 2 alarms:

- High / Low Temperature Alarm (Plus room sensor)
- High / Low Humidity Alarm (Plus room sensor)

Front & Back Access
Full access to your incubator makes cleaning so much easier! Just ask anyone who has tried a similar setup.  We decided to design these incubators in a way that makes simple tasks just that much easier.

Specifications

Brand: Cimuka

Model: HB500S

Design: Prodi TM

Material:

- Insulated Walls: ABS Plastic
- Frame: Anodized Aluminum

Power:

- Voltage: 110 V / 60 HZ
- Average Energy Consumption: 115 W
- Max Wattage: 300 W

Assembly Effort: Minimal

Recommended Location: Indoors, preferably a temperature-controlled room

Dimensions & Weight:

- Assembled Unit: L 21.5” x W 34” x H 57”
- Cabinet Size: L 18.5" x W 34" x H 52"
- Box: L 20.7” x W 34.5” x H 52.5”
- Weight: 88.5 lb

Assembly / User Manual

User Manual User Manual
